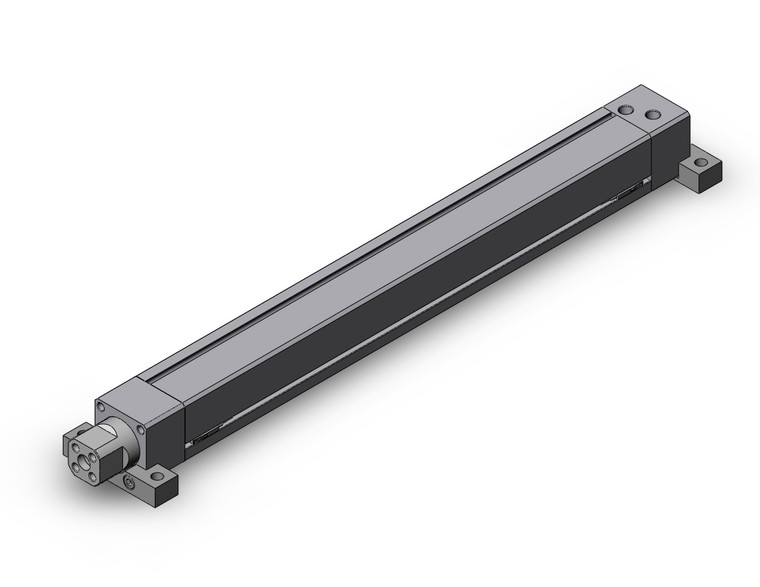

SMC MGZL32-400-M9BAL MGZ Series Non-rotating Double Power Cylinder
SKU:
MGZL32-400-M9BAL
UPC:
MPN:
MGZL32-400-M9BAL
Condition:
New
Mounting Style:
Transaxial foot style
Bore Size:
Bore Size 32 mm
Port Thread Type:
Rc or M5X0.8
Coil Scraper:
Without no Coil scraper
Cylinder Stroke:
Standard Stroke 400 mm
Auto Switch:
Water Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
Doubles the output in the extending direction with a unique structure.; A built-in non-rotating mechanism using slide keys allows loads to be mounted directly.
