SMC MHF2-12D-M9PSAPC Gripper

(No reviews yet) Write a Review
SKU:
MHF2-12D-M9PSAPC
MPN:
MHF2-12D-M9PSAPC
Condition:
New
Manufacturer Part #:
MHF2-12D-M9PSAPC
Opening & Closing Stroke:
Short Stroke
Number of Ports:
2 pcs. (Or None in the Case of No Switch)
Option:
None
Bore Size:
12mm
Lead or Prewired Connector:
0.5m Cord Length, M8-3 Pin Connector
Auto Switch:
Solid State, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5M
Body Option:
Axial Direction Ported
$414.85

Description

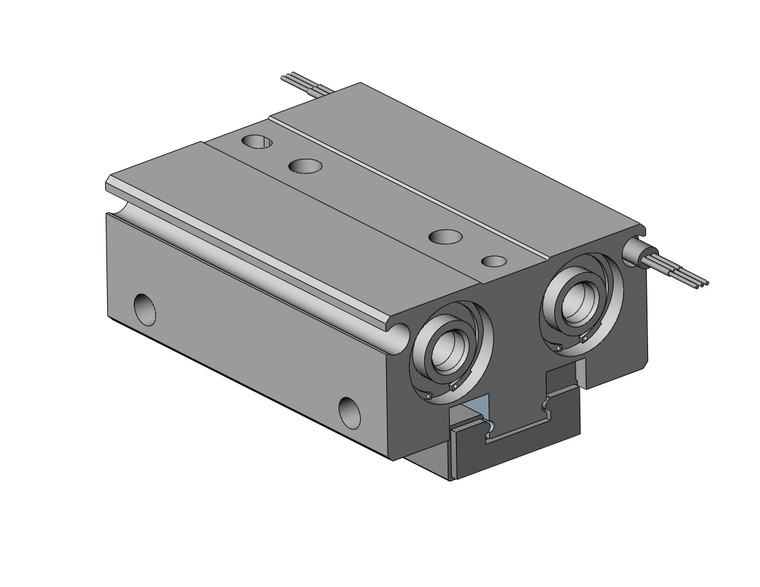

MHF2, Air Gripper, 2 Finger, Low Profile

The low profile design saves space, reduces bending moments and improves accuracy with smooth operation. Available with three standard stroke lengths (short, medium, long) for each bore size.

- Bore sizes: 8, 12, 16, 20 mm
- Opening/closing stroke range: 8 - 80 mm
- Adjustable stroke option
- Auto switch capable
- Option for NSF-H1, food grade lubricant
-

Series Catalog

AutoCAD File
