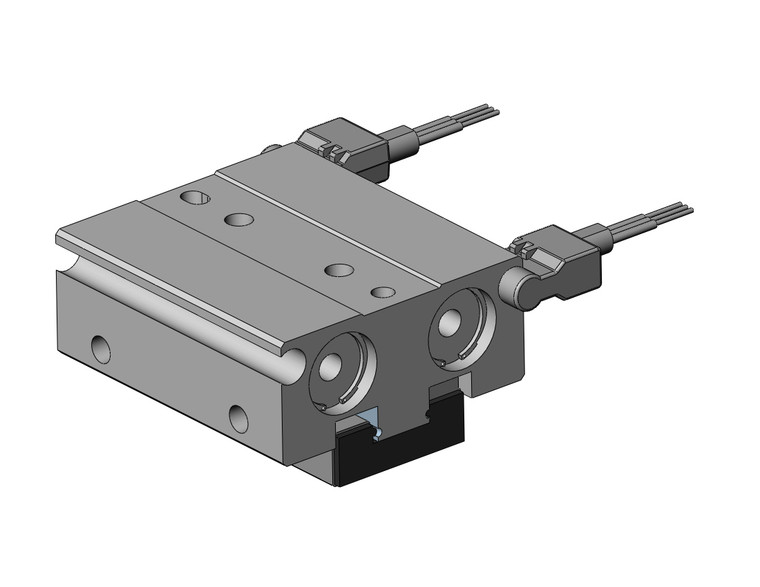

SMC MHF2-8DR-M9NWVL MHF2 Series Air Gripper Parallel Style Linear guide Type Compact Type
SMC
$370.75
The SMC MHF2-8DR-M9NWVL is a part of the MHF2 Series Air Gripper, designed with a parallel style linear guide for a compact and efficient gripping solution. This air gripper significantly reduces height to approximately one-third of standard grippers, making it ideal for applications with limited space. Its low-profile design minimizes moment generation, enhancing stability and precision. Available in short, middle, and long strokes, this gripper offers versatility to suit various operational needs. Despite its compact size, it delivers a robust gripping force thanks to its innovative double piston mechanism, ensuring reliable performance in demanding environments.
- Bore Size:
- Bore Size 8 mm
- Stroke:
- Short Stroke
- Body Option:
- Side Piping Type
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
