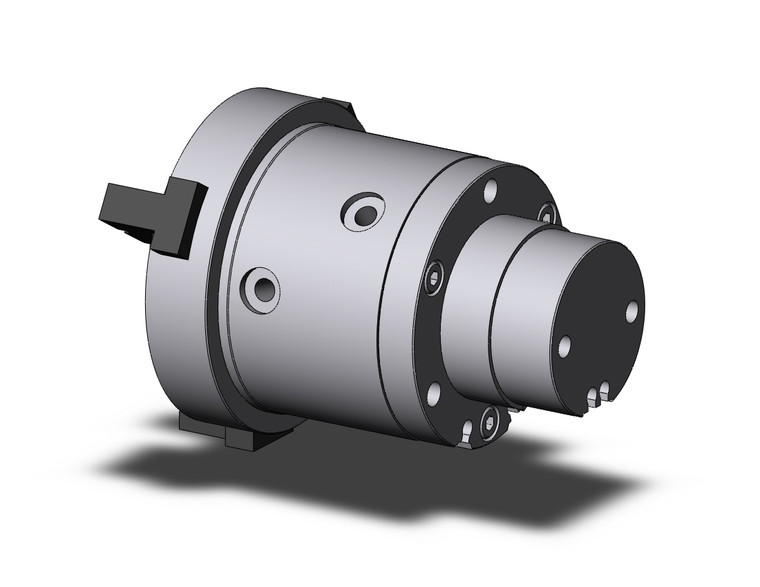

SMC MHSH3-40DA MHSH3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Through-hole Type
SMC
$628.20
The SMC MHSH3-40DA is a versatile air gripper designed for precision and efficiency in industrial applications. Featuring a parallel style slide guide and a round body, this 3-finger gripper is engineered for optimal performance in operations where external force is applied, such as press fitting. Its vertically compact and lightweight design is achieved through a wedge-shaped cam construction, making it ideal for space-constrained environments. With a repeatability of ±0.01 mm, the MHSH3-40DA ensures consistent and accurate handling of workpieces. The long stroke type offers strokes that are twice as long as the standard type, providing enhanced flexibility for gripping cylindrical workpieces. Additionally, the gripper's through-holes and center pusher facilitate reliable removal of workpieces, ensuring seamless integration into your production line.
- Dust Cover:
- None
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- M thread(?16to?63)?Rc(?80)
- Center pusher:
- Cylinder type
- Dust cover type(with dust cover only):
- Without Dust Cover Type/Chloroprene Rubber (CR)
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
