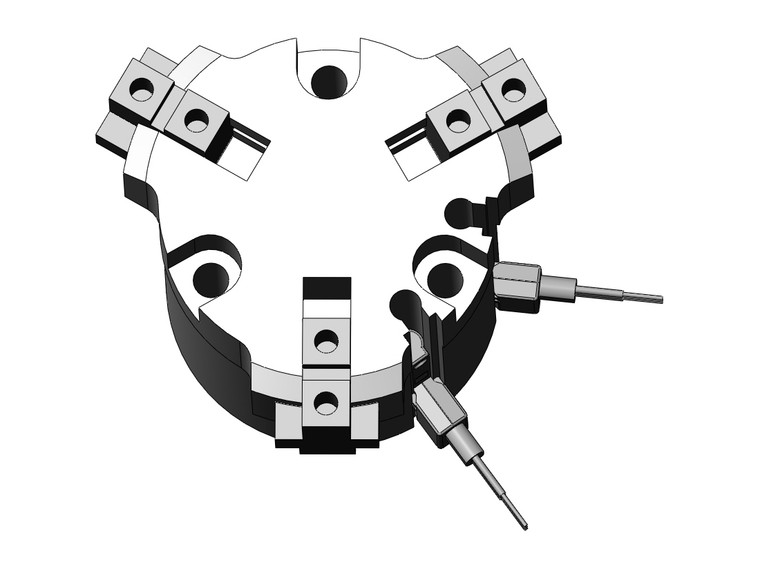

SMC MHSL3-25D-M9PVSAPC MHSL3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Long Stroke Type
SMC
$488.20
The SMC MHSL3-25D-M9PVSAPC is a versatile air gripper designed for precision and efficiency in industrial applications. Its parallel style slide guide and round body construction make it ideal for gripping cylindrical workpieces with ease. The 3-finger long stroke type offers strokes that are twice as long as the standard type, ensuring a secure grip even in demanding operations. Thanks to its vertically compact and lightweight design, achieved through a wedge-shaped cam construction, this air gripper is perfect for operations where external force is applied, such as press fitting. With a repeatability of ±0.01 mm, it guarantees consistent performance. Additionally, the gripper features reliable removal of workpieces with through-holes and a center pusher, enhancing its functionality in various industrial settings.
- Bore Size:
- Bore Size 25 mm
- Port Thread Type:
- M thread(?16to?63)?Rc(?80to?125)
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
