SMC MHW2-20D-M9BSAPC Gripper
- SKU:
- MHW2-20D-M9BSAPC
- Condition:
- New
- Availability:
- In stock: 2
- Bore Size:
- 20mm
- Thread Type:
- Rc (or M Thread for 20 & 25 Bore)
- Finger Option:
- Flat Finger Mounting Style (Standard)
- Auto Switch:
- M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal
- Lead Wire or Prewired Connector:
- SAPC (0.5m Cord Length, M8-3 Pin Connector)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description

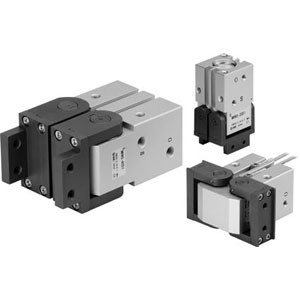

MHW2, Air Gripper, 180° Angular, Rack & Pinion Style
The 180 angular opening fingers can rotate back perpendicular to the gripper body for space saving and low clearance applications. While the fingers are in the 180 retracted position, the MHW2 can move in an X-Y plane to the work location. Its unique seal design and construction protects from dust exposure and allows for a shorter overall body length.
-
- Bore sizes: 20, 25, 32, 40, 50 mm- Auto switch capable
- Option for NSF-H1, food grade lubricant
-
