SMC MHZ2-32D-X7 Gripper
- SKU:
- MHZ2-32D-X7
- Condition:
- New
- Availability:
- In stock: 10
- Manufacturer Part #:
- MHZ2-32D-X7
- Finger Position:
- Standard
- Made to Order:
- Closing Direction Spring Assist
- Number of Ports:
- 2 pcs. (Or None in the Case of No Switch)
- Bore Size:
- 32mm
- Lead or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Auto Switch:
- No Switch
- Body Option:
- Basic
- Action:
- Double Acting
Description

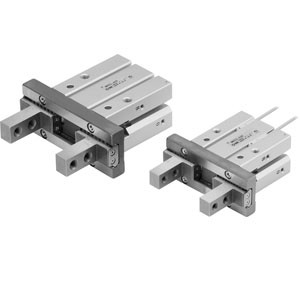

MHZ2, Air Gripper, Parallel Type, Standard
The MHZ2 Series gripper has an integrated linear guide for high rigidity, positioned with two dowel pins to prevent guide slippage. It has mounting versatility on three sides, in five configurations. Available in single acting (N.O., N.C.) and double acting.
- Bore sizes: 6, 10, 16, 20, 25, 32, 40 mm- High repeatability: 0.01 mm
- Standard, narrow and flat finger options
- Auto switch capable
- Option for NSF-H1, food grade lubricant
-
