Description

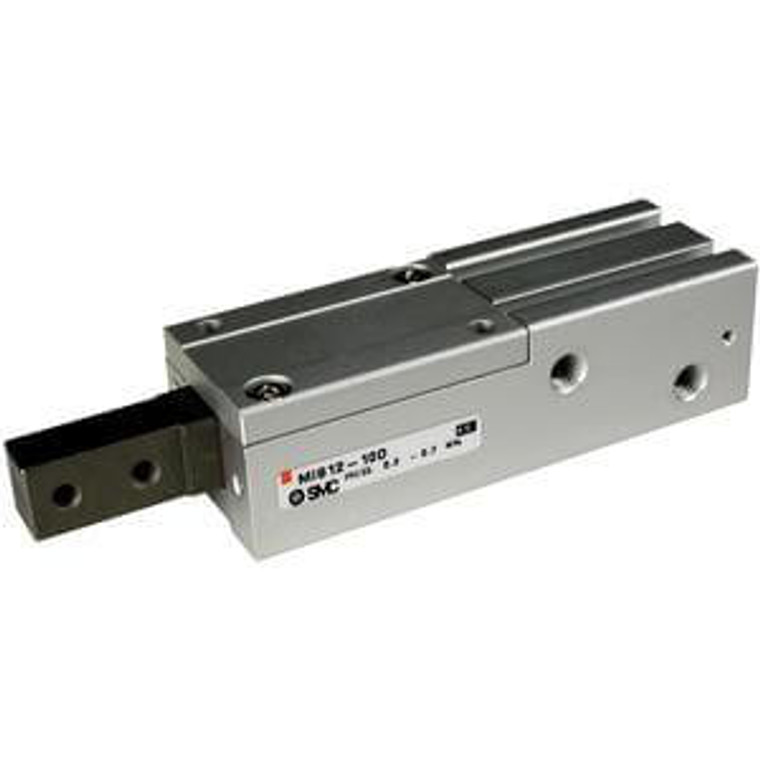

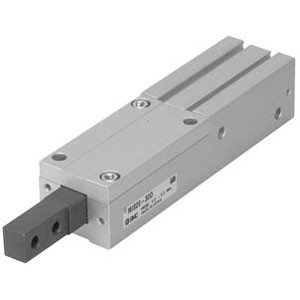

MIS, Escapement, 1 Finger Type
The MIS is an effective addition to conveyors, vibratory feeders, magazines and hoppers for separating and feeding individual parts or work pieces on assembly and production lines. A floating mechanism separates the finger from the internal piston allowing for easier finger replacement.
-
- Stroke lengths: 10, 20, 30, 50 mm- Scraper option
- Stroke adjuster option
- Auto switch capable
- Bore sizes: 8, 12, 20, 25, 32 mm
-
Additional Information
Bore Size: |
8mm |
Thread: |
M Thread:8~25 Bore, Rc: 32 Bore |
Stroke: |
20mm |
Finger Option: |
Tapped on Upper and Lower Faces |
Stroke Adjusting Unit: |
No |
Scraper: |
No |
Auto Switch: |
No Switch |
