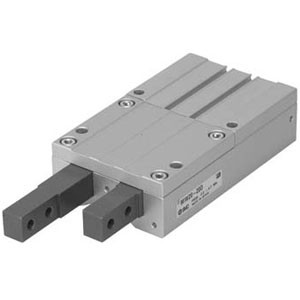

SMC MIW32-32D Escapement

(No reviews yet) Write a Review
SKU:
MIW32-32D
Condition:
New
$448.65

Description

MIW, Escapement, 2 Finger Type

The MIW is a two-finger, slider guide cylinder with sequentially operating fingers making it an effective addition to conveyors, vibratory feeders, magazines and hoppers for separating and feeding individual parts or work pieces on assembly and production lines. An interlocking cam mechanism controls the air passage to the two piston rods, pressuring one while exhausting the other, producing the sequential operation. A floating mechanism separates the fingers from the internal piston allowing for easier finger replacement.
-

- Stroke lengths: 8, 12, 20, 25, 32 mm
- Scraper option
- Stroke adjuster option
- Auto switch capable
- Bore sizes: 8, 12, 20, 25, 32 mm
-

Series Catalog

AutoCAD File

View AllClose

Additional Information

Bore Size:
32mm
Thread:
M Thread=8~25 Bore, Rc= 32 Bore
Stroke:
32mm
Finger Option:
Basic Style (Standard)
Stroke Adjusting Unit:
No
Scraper:
No
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
View AllClose
