SMC

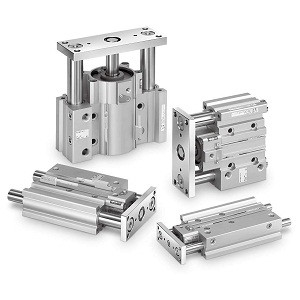

SMC MLGPM32TF-250Z-F-M9PWSDPC3 MLGP-Z Series Compact Guide Cylinder With Lock

(No reviews yet) Write a Review
SKU:
MLGPM32TF-250Z-F-M9PWSDPC3
MPN:
MLGPM32TF-250Z-F-M9PWSDPC3
Condition:
New
Bearing Type:
Slide Bearing
Bore Size:
Bore Size 32 mm
Port Type:
G
Cylinder Stroke:
Standard Stroke 250 mm
Lock Direction:
Extension Locking
Auto Switch:
2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Made To Order:
Standard
$681.90

Description

MLGP-Z Series Compact Guide Cylinder With Lock

  • Stopping possible at any stroke position; Drop prevention when the pressure is decreased or the residual pressure is released;
  • Weight reduced by up to 17% with a shorter guide rod and thinner plate; Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM);
  • Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces
