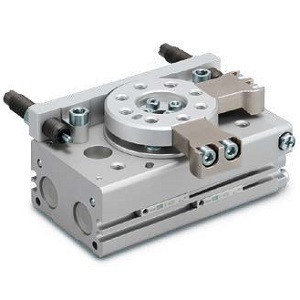

SMC MSQ20L5 MSQ Series Rotary Table/Rack & Pinion Type With External Absorber

SMC MSQ20L5 MSQ Series Rotary Table/Rack & Pinion Type With External Absorber

SMC
SKU:
MSQ20L5
Availability:
Factory Stock
$407.50
Condition:
New
Current Stock:
Description

MSQ Series Rotary Table/Rack & Pinion Type With External Absorber

  • An external shock absorber option has been added. [New];
  • Compact and lightweight; Height: Max. 28% reduction? (54 mm ? 39 mm); Weight: Max. 28% reduction? (940 g ? 680 g);
  • Enlarged center hole diameter for piping (?9 mm ? ?12 mm); * Compared with the existing model (MSQ20);
  • The adjustable rotation time range is expanded. (0.2 to 2.0 s/90º); Can be used at lower speeds compared with the existing model
    • Additional Information
    Size:
    20
    Shock Absorber Type:
    Shock Absorber For Low Energy
    Port Location/Rotation:
    Symmetric Type90°
    Auto Switch:
    Without Auto Switch (Built-In Magnet)
    Number Of Auto Switches:
    2 pcs. Or None
    Port Type:
    M5(10,20)
    Interchangeable Plate:
    None
    Made To Order:
    Standard
