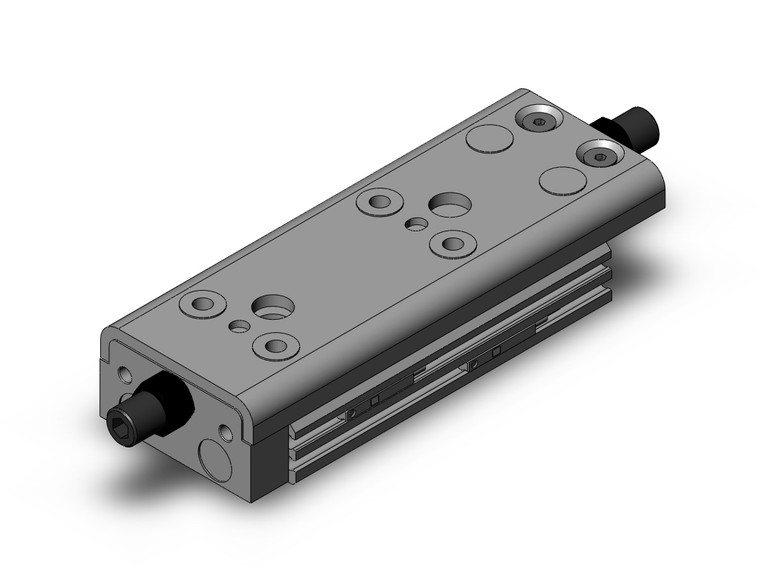

SMC MXQ12B-40ZD-M9BWL Cylinder, Slide Table, With Auto Switch

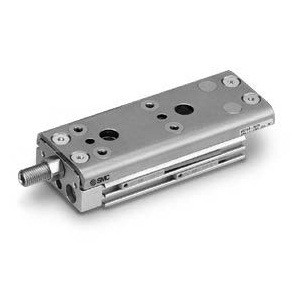

SMC MXQ12B-40ZD-M9BWL MXQB Series Air Slide Table Low Thrust With High Rigidity Type

SMC
SKU:
MXQ12B-40ZD-M9BWL
Availability:
Factory Stock
$444.30
Condition:
New
Current Stock:
Description
The SMC MXQ12B-40ZD-M9BWL MXQB Series Air Slide Table is engineered for applications requiring low thrust and high rigidity. This advanced model boasts a 10% reduction in height, measuring just 27 mm compared to the previous 30 mm, making it more compact and versatile for various setups. Additionally, the product weight has been significantly reduced by 22%, now weighing only 298 g, enhancing ease of installation and handling. The allowable kinetic energy has seen a remarkable 64% improvement, now accommodating up to 0.09 J, ensuring superior performance and reliability in demanding environments. Ideal for precision tasks, this air slide table is a testament to SMC's commitment to innovation and efficiency.
Additional Information
Bore Size:
Bore Size 12 mm
Body Option:
Low Thrust With High Rigidity Type Standard Type
Stroke:
Stroke 40 mm
Adjuster Option:
Extension End Rubber Stopper + Retraction End Rubber Stopper
Auto Switch:
2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
