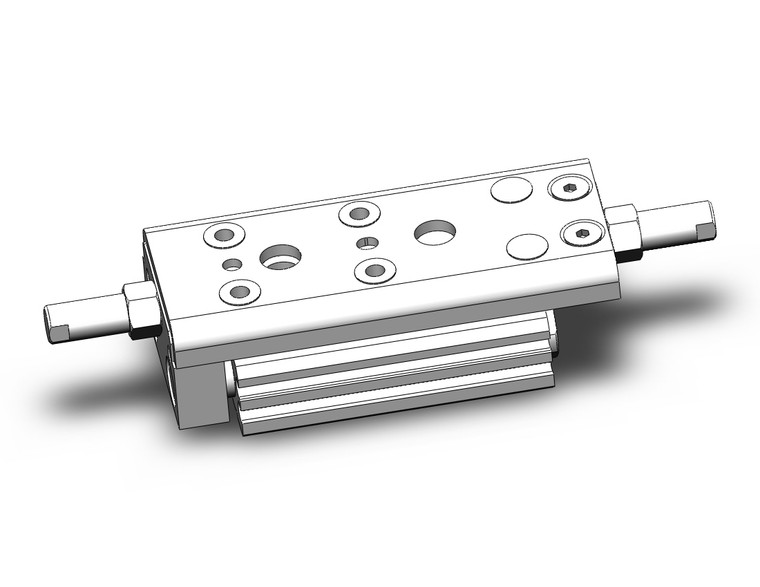

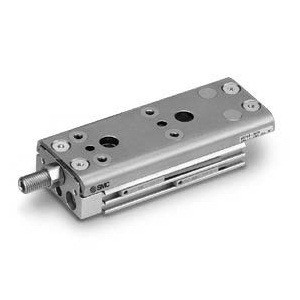

SMC MXQ12C-20ZG3 MXQC Series Air Slide Table Single ported type
SMC
$464.75
SMC MXQ12C-20ZG3 - MXQC Series Precision Air Slide Table, Single Ported, 12mm Bore, 20mm Stroke
The SMC MXQ12C-20ZG3 provides precision pneumatic slide table motion with recirculating ball bearings and hardened stainless steel guides for tight positional accuracy. With a 12mm bore and 20mm stroke, this single-side-ported slide table utilizes hardened stainless steel guides and recirculating ball bearings for superior positional accuracy.
Key Features & Specifications
- Recirculating ball bearings - size-matched with slight negative clearance for superior precision
- Stainless steel slide table - thinly formed for larger guide pitch and high rigidity
- Center-axis stoppers & shock absorbers - minimize load deflection at stroke end
- Single-side ported (C-type) - compact design with dual auto-switch mounting in one groove
- Height reduced 10% - lower profile for tighter machine integration
- Weight reduced 22% - lighter construction for faster cycle times
- Bore Size: 12mm | Stroke: 20mm | Single Ported
Typical Applications
Ideal for precision positioning, inspection, and pick-and-place operations requiring closely held parallelism and repeatability.
Manufactured by SMC Corporation.
- Bore Size:
- Bore Size 12 mm
- Body Option:
- Single Side-ported Type Standard Type
- Stroke:
- Stroke 20 mm
- Adjuster Option:
- Extension End Shock Absorber RJ + Retraction End Shock Absorber RJ
- Functional Option:
- Axial Piping Type
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
