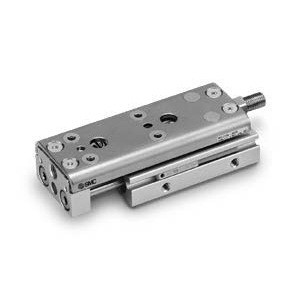

SMC MXQ20A-75Z2 Guided Cylinder

(No reviews yet) Write a Review
SKU:
MXQ20A-75Z2
MPN:
MXQ20A-75Z2
Condition:
New
Manufacturer:
SMC
$498.95

Related Products

Related Products

<h2>MXQ*A, Precision Slide Table (Recirculating Bearings) - Standard Double Ported</h2><p><h3>The MXQ*A is the newest generation of precision slide tables integrated with hardened stainless steel guides and rails to isolate the load bearing from the movement of the dual rods and piston seals. Its recirculating ball bearings are matched by size to each slide table with a slight negative clearance resulting in greater accuracy. The MXQ s thinly formed special stainless steel slide table reduces thickness allowing for a larger guide pitch providing high rigidity. The slide table s reduced weigh also increases allowable kinetic energy. The stoppers and shock absorbers are positioned at the center axis to minimize load deflection. The dowel pin holes positioned on the center axis standardizes mounting conditions for the basic and symmetric styles. The end lock option prevents the slide table from dropping in vertical applications, enhancing safety in the event of air pressure loss.<br>- </h3>- Bore sizes: 6, 8, 12, 16, 20, 25 mm<br>- Repeatable positioning accuracy: +/-0.05 mm<br>- Stroke adjuster options: rubber, metal stopper or shock absorber<br>- End lock option in the event of air pressure loss<br>- PTFE grease or food grade grease option<br>- RoHS compliant<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MXQ_A.pdf" target="_blank">Series Catalog</a>

SMC MXQ20A-75Z Guided Cylinder

$411.60
MXQ*A, Precision Slide Table (Recirculating Bearings) - Standard Double PortedThe MXQ*A is the newest generation of precision slide tables integrated with hardened stainless steel guides and rails to...
MXQ20A-75Z
<h2>MXQ, Precision Slide Table (Recirculating Bearings) - Height Interchangeable with Legacy MXQ</h2><p><h3>The MXQ is the newest generation of precision slide tables integrated with hardened stainless steel guides and rails to isolate the load bearing from the movement of the dual rods and piston seals. The new MXQ is interchangeable in height dimension with the legacy style MXQ. Its recirculating ball bearings are matched by size to each slide table with a slight negative clearance resulting in greater accuracy. The MXQ s thinly formed special stainless steel slide table reduces thickness allowing for a larger guide pitch providing high rigidity. The slide table s reduced weigh also increases allowable kinetic energy. The stoppers and shock absorbers are positioned at the center axis to minimize load deflection. The dowel pin holes positioned on the center axis standardizes mounting conditions for the basic and symmetric styles. The end lock option prevents the slide table from dropping in vertical applications, enhancing safety in the event of air pressure loss.<br>- </h3>- Bore sizes: 6, 8, 12, 16, 20, 25 mm<br>- Height interchangeable with legacy style MXQ<br>- Repeatable positioning accuracy: +/-0.05 mm<br>- Stroke adjuster options: rubber, metal stopper or shock absorber<br>- End lock option in the event of air pressure loss<br>- PTFE grease or food grade grease option<br>- RoHS compliant<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MXQ_A.pdf" target="_blank">Series Catalog</a> SMC MXQ20-75Z cylinder, slide table

SMC MXQ20-75Z Cylinder, Air Slide Table

$589.90
MXQ, Precision Slide Table (Recirculating Bearings) - Height Interchangeable with Legacy MXQThe MXQ is the newest generation of precision slide tables integrated with hardened stainless steel guides...
MXQ20-75Z
