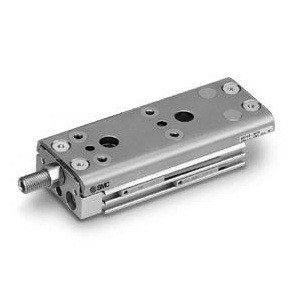

SMC MXQ8C-10ZA MXQC Series Air Slide Table Single ported type
SMC
$283.75
SMC MXQ8C-10ZA - MXQC Series Precision Air Slide Table, Single Ported, 8mm Bore, 10mm Stroke
The SMC MXQ8C-10ZA delivers compact, high-rigidity slide table actuation with center-axis stoppers that minimize load deflection at stroke end. With a 8mm bore and 10mm stroke, this single-side-ported slide table utilizes hardened stainless steel guides and recirculating ball bearings for superior positional accuracy.
Key Features & Specifications
- Recirculating ball bearings - size-matched with slight negative clearance for superior precision
- Stainless steel slide table - thinly formed for larger guide pitch and high rigidity
- Center-axis stoppers & shock absorbers - minimize load deflection at stroke end
- Single-side ported (C-type) - compact design with dual auto-switch mounting in one groove
- Height reduced 10% - lower profile for tighter machine integration
- Weight reduced 22% - lighter construction for faster cycle times
- Bore Size: 8mm | Stroke: 10mm | Single Ported
Typical Applications
Suited for light assembly, sensor positioning, and circuit board testing where compact footprint and high accuracy are critical.
Manufactured by SMC Corporation.
- Bore Size:
- Bore Size 8 mm
- Body Option:
- Single Side-ported Type Standard Type
- Stroke:
- Stroke 10 mm
- Adjuster Option:
- Extension End Metal Stopper With Bumper + Retraction End Metal Stopper With Bumper
- Functional Option:
- Without Option
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
