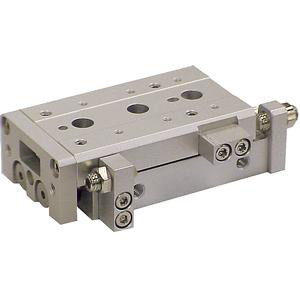

SMC MXS20TNL-40ASBT-M9BVMAPC MXS L Series Air Slide Table(Symmetric Type)

SMC MXS20TNL-40ASBT-M9BVMAPC MXS L Series Air Slide Table(Symmetric Type)

SMC
SKU:
MXS20TNL-40ASBT-M9BVMAPC
Availability:
Contact us to confirm availability and lead times.
$597.95
Condition:
New
Current Stock:
Description

MXS L Series Air Slide Table(Symmetric Type)

  • Integrated with a worktable in a compact manner;
  • An air slide table that is ideal for precision assembly work;
  • High rigidity and high accuracy;
  • A smooth movement without looseness has been achieved through the; adoption of a cross roller guide;
  • Compact and lightweight;
  • Provides twice the output of a conventional cylinder through the; adoption of the dual rod function
    • Additional Information
    Bore Size:
    Bore Size 20 mm
    Port Thread Type:
    NPT
    Cylinder Stroke:
    Standard Stroke 40 mm
    Adjuster Option:
    Extension End Adjustor + Retraction End Absorber
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 2-wire, Perpendicular, Lead Wire :1m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
