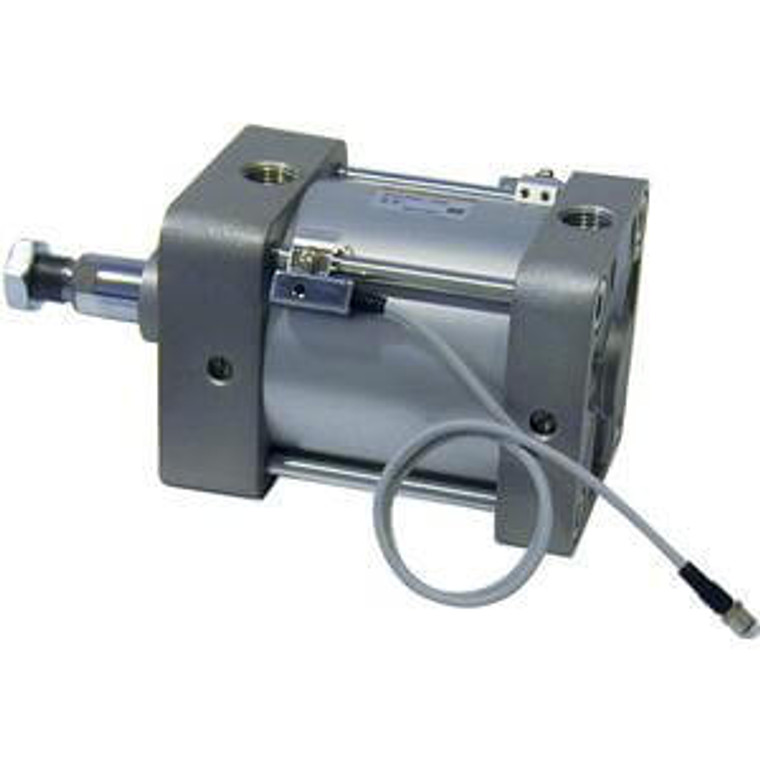

SMC NCA1S400-0400R Tie Rod Cylinder

(No reviews yet) Write a Review
SKU:
NCA1S400-0400R
Condition:
New
Magnet:
None
Mounting:
S (MS2, Side Lug)
Bore Size:
400 (4")
Stroke:
0400 (4")
Air Cushion / Rod Boot:
R (Rod End Air Cushion)
Adjustment Range:
Not Applicable
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
X Option:
None
$252.10

Description

NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Double Rod, Non-Rotating, Oversized Rod, Large Bore w/Options

Series NCA1 medium duty tie rod cylinders are NFPA interchangeable, have a crimped piston rod assembly, are pre-lubricated and available in 11 mounting styles. Bore sizes range from 1.5 to 4 inches. The NCA1 expanded line of medium duty cylinders has bore sizes ranging from 5 to 8 inches, while the heavy duty range is 1.5 to 14 inches. The single rod model is available in 22 mounting styles.

- Standard and non-rotating double acting and double rod
- Oversized Rod
- Large Bore
- Bore sizes: 1 , 2, 2 , 3 , 4 , 5 , 6 , 8
- Strokes from 1/2 to 80
- NFPA Standard Mounts: basic, foot, flange, clevis, trunnion, etc
- NFPA Standard Rod Ends: small male, short femalee, flanged, etc
- Variety of switches and a variety of lead wire lengths
- Optional air cushions and rod boots
-

Series Catalog
