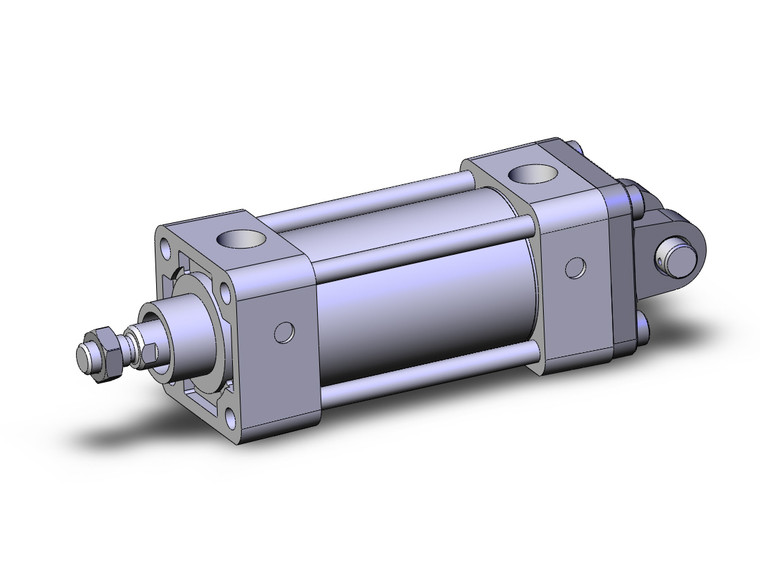

SMC NCDA1D200-0200-XC6 Tie Rod Cylinder
- SKU:
- NCDA1D200-0200-XC6
- Condition:
- New
- Magnet:
- D (Built-in)
- Mounting:
- D (MP2, Detachable Rear Clevis)
- Bore Size:
- 200 (2")
- Stroke:
- 0200 (2")
- Air Cushion / Rod Boot:
- Both Ends (Air Cushion)
- Adjustment Range:
- Not Applicable
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- XC6 (Piston Rod and Rod End Nut SUS)
Description
NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Environment Options
Series NCA1 medium duty tie rod cylinders are NFPA interchangeable, have a crimped piston rod assembly, are pre-lubricated and available in 12 mounting styles. Bore sizes range from 1.5 to 4 inches. Environment options include the XC6 stainless steel piston rod, XC22 fluoro-rubber seals, XC35 coil scraper, and X130US stainless steel parts: piston rod, tie rod, tie rod nut, cushion valve needle.
-
- XC6 stainless steel piston rod- XC22 fluoro-rubber seals
- XC35 coil scraper
- X130US stainless steel parts: piston rod, tie rod/nut, cushion valve needle
- Double acting single rod
- Bore sizes: 1 , 2, 2 , 3 , 4
- Strokes from 1 to 73
- 12 mounting options
-
