Description

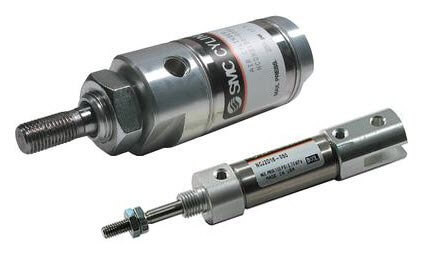

Nc(D)M, Stainless Steel Cylinder, Double Acting, Single Rod, Standard
Standard Double Acting Single Rod Version Of Our Ncm Stainless Steel Cylinders. A Wear Ring Extends The Seal Life And A Bronze Rod Bushing Is Standard On All Bore Sizes. The Ncm Is Available In 3 Mounting Styles (Front Nose, Double End And Rear Pivot). The Ncm Is Auto-Switch Capable Without Any Change In Cylinder Dimension. Bore Sizes Range From 7/16 To 2 And Standard Strokes From 1/2 To 12 .
- Double Acting Single Rod- Bore Sizes (Inch): 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
- Mounts: Nose, Rear, End, Rod, Block
- Variety Of Switches And Lead Wire Lengths
- Optional Rod Boot
