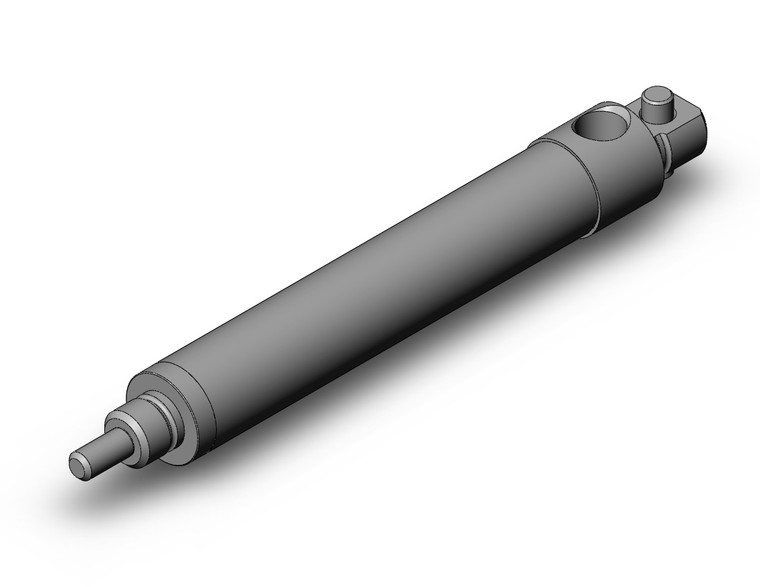

SMC NCDMC075-0200CS Round Body Cylinder

(No reviews yet) Write a Review
SKU:
NCDMC075-0200CS
Condition:
New
Availability:
In stock: 3
Magnet:
D (Built-in)
Mounting:
C (Head Side Pivot)
Bore Size:
075 (3/4")
Stroke:
0200 (2")
Cushion:
C (Rubber Bumper)
Actuation:
S (Single Acting, Spring Return)
Auto Switch:
None
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
$33.50

Description

NC(D)M-S/T, Stainless Steel Cylinder, Single Acting, Single Rod

Standard single acting single rod version of our NCM stainless steel cylinders. The NCM is available in 3 mounting styles (front nose, double end, rear pivot). Single acting is available in either spring extend or spring return. Bore sizes range from 3/4 to 1 1/2 and standard strokes from 1/2 to 6 . Available with auto-switch capable as standard.

- Single acting single rod, spring return or spring extend
- Bore sizes (inch): 3/4, 7/8, 1 1/16, , 1 1/4, 1 1/2
- Maximum stroke: up to 6 as standard
- Available with auto switches
-

Series Catalog

AutoCAD File
