SMC NCDQ2A16-10TZ Compact Cylinder
- SKU:
- NCDQ2A16-10TZ
- Condition:
- New
- Magnet:
- D (Built-in)
- Mounting:
- A (Both Ends Tapped)
- Bore Size:
- 16mm
- Stroke:
- 10mm
- Action:
- T (Single Acting, Spring Extend)
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Groove:
- Z (Auto Switch Mounting Grooves)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description

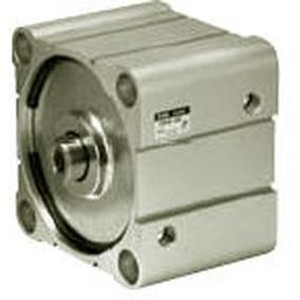

NC(D)Q2-Z, Compact Cylinder, Single Acting Single Rod
Standard single acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 50mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Single acting, single rod, compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50
- Standard stroke range (mm): 5, 10, 20
- Mounting includes: Through hole (standard), threaded, clevis, foot, head flange, and rod flange
- Auto switch capable
