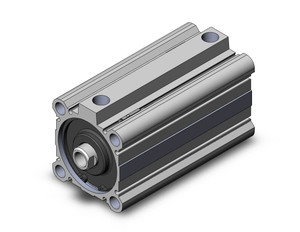

SMC NCDQ2A63-100DZ Compact Cylinder, Ncq2-Z
- SKU:
- NCDQ2A63-100DZ
- Condition:
- New
- Availability:
- In stock: 46
- Magnet:
- Built-in
- Rod Type:
- Standard
- Mounting:
- Both Ends Tapped
- Bore Size:
- 63mm
- Stroke:
- 100mm
- Body Option:
- Rod End Female Thread
- Auto Switch Groove:
- Auto Switch Mounting Grooves
- Auto Switch:
- No Switch
- Magnet::
- Built-In
- Mounting::
- Both Ends Tapped
- Bore Size::
- 63 mm
- Stroke::
- 100 mm
- Auto Switch Groove::
- Auto Switch Mounting Grooves
Description
NC(D)Q2-Z, Compact Cylinder, Double Acting, Single Rod
Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting, single rod, compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, clevis, foot, head flange and rod flange
- Auto switch capable
-
