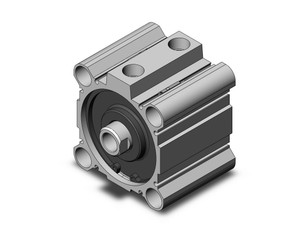

SMC NCDQ2B80-25DZ Compact Cylinder

(No reviews yet) Write a Review
SKU:
NCDQ2B80-25DZ
Condition:
New
Availability:
In stock: 3
$99.20

Description

NC(D)Q2-Z, Compact Cylinder, Double Acting, Single Rod

Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.

- Double acting, single rod, compact cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, clevis, foot, head flange and rod flange
- Auto switch capable
-

Series Catalog

AutoCAD File

View AllClose

Additional Information

Magnet:
D (Built-in)
Rod Type:
Standard
Mounting:
B [Through Hole (Standard)]
Bore Size:
80mm
Stroke:
25mm
Body Option:
Standard (Rod End Female Thread)
Auto Switch Groove:
Z (Auto Switch Mounting Grooves)
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
