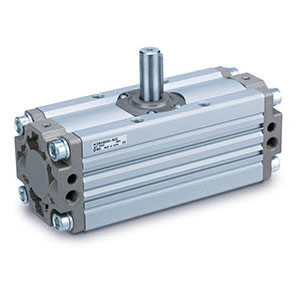

SMC NCDRA1BS50-90CZ Actuator, Rotary, Rack & Pinion Type
SMC
$280.70
The SMC NCDRA1BS50-90CZ Rotary Actuator is engineered for precision and efficiency, featuring a robust rack and pinion design that delivers exceptional torque-to-size ratio. This actuator is ideal for applications requiring accurate positioning and reliable performance. With a bore size of 50mm, it is part of the versatile NCRA1 series, which offers bore sizes ranging from 30mm to 100mm to suit various industrial needs.
Designed with flexibility in mind, the NCDRA1BS50-90CZ supports both single and double rod end configurations, allowing for tailored solutions in complex systems. Its basic mounting type ensures straightforward installation, while the rail type mounting facilitates easy adjustment of switch positions, enhancing operational efficiency.
This rotary actuator is auto switch capable, providing seamless integration into automated systems for enhanced control and monitoring. Engineers and manufacturing professionals will appreciate the actuator's compatibility with AutoCAD, with downloadable files available for precise design and implementation.
For detailed specifications and technical insights, refer to the [Series Catalog](https://content2.smcetech.com/pdf/NC(D)RA1_Z.pdf) and access the [AutoCAD File](https://models.smcetech.com/NCDRA1BS50-90CZ/dl3d/step/AP214/NCDRA1BS50-90CZ.step.zip) for comprehensive design support. Optimize your industrial applications with the SMC NCDRA1BS50-90CZ, where precision meets reliability.
- Manufacturer:
- SMC
- Manufacturer Part #:
- NCDRA1BS50-90CZ
- Shaft:
- Single Shaft
- Number of Cores:
- 2 pcs. [Or None in the Case of No Switch]
- Rotation Angle:
- 90°
- Size:
- 50 mm
- Mounting:
- Basic
- Lead or Prewired Connector:
- 0.5m [Or None in the Case of No Switch]
- Auto Switch:
- No Switch
- Magnet:
- Built-in Magnet
- Cushion:
- w/Air Cushion
- Specification:
- North American Specification
