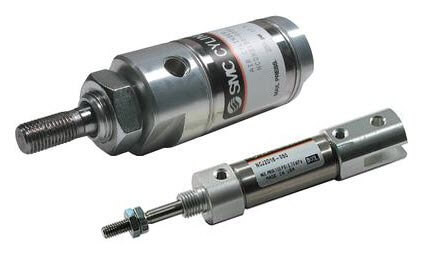

SMC NCME106-1000C-XC6 Round Body Cylinder

(No reviews yet) Write a Review
SKU:
NCME106-1000C-XC6
Condition:
New
Availability:
In stock: 1
Magnet:
None
Mounting:
E (Double End)
Bore Size:
106 (1 1/16")
Stroke:
1000
Cushion:
C (Rubber Bumper)
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
-X:
-X
Rod End Modifications:
Standard Rod End
Special Temperature:
Standard (40?? to 140??F)
Speed:
Standard (2 to 20 in/sec)
Stainless Rod:
XC6 (SS Rod & Nut= All Bores)
  • SMC NCME106-1000C-XC6 ncm, air cylinder
  • SMC NCME106-1000C-XC6 ncm, air cylinder
  • SMC NCME106-1000C-XC6 Round Body Cylinder
  • SMC NCME106-1000C-XC6 Round Body Cylinder
  • SMC NCME106-1000C-XC6 Round Body Cylinder
  • SMC NCME106-1000C-XC6 Round Body Cylinder
  • SMC NCME150-2900 cyl, air 1 1/2 bore, NCM ROUND BODY CYLINDER
$54.05

Description

series ncm stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. a wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. the ncm is available in 4 mounting styles * as well as double rod and spring return or spring extend models. the ncm is auto-switch capable without any change in cylinder dimension. bore sizes range from 7/16in. to 2in. and standard strokes from 1/2in. to 12in..

  • double acting single rod
  • bore sizes *: 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
  • mounts: nose, rear, end, rod, block
  • variety of switches and lead wire lengths
  • optional rod boot
