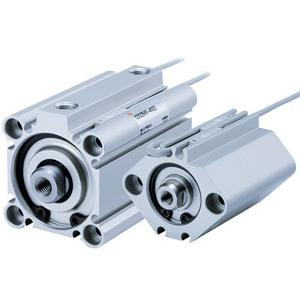

SMC NCQ2B50-40DMZ Compact Cylinder, Ncq2-Z

(No reviews yet) Write a Review

SKU:: NCQ2B50-40DMZ
Condition:: New
Availability:: In stock: 5
Rod Type:: Standard
Mounting:: Standard
Bore Size:: 50mm
Stroke:: 40mm
Body Option:: Rod End Male Thread
Auto Switch Groove:: Auto Switch Mounting Grooves
Auto Switch:: No Switch
Magnet::: No
Mounting::: Through Hole (Standard)
Bore Size::: 50 mm
Stroke::: 40 mm
Body Option::: Rod End Male Thread
Auto Switch Groove::: Auto Switch Mounting Grooves

$62.20

Current Stock:

Quantity:

Description

Description

NC(D)Q2-Z, Compact Cylinder, Double Acting, Single Rod

Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.

- Double acting, single rod, compact cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, clevis, foot, head flange and rod flange
- Auto switch capable
-
