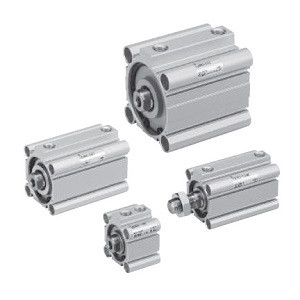

SMC NCQ2B80-40DMZ Compact Cylinder
- SKU:
- NCQ2B80-40DMZ
- Condition:
- New
- Availability:
- In stock: 36
- Magnet:
- None
- Rod Type:
- Standard
- Mounting:
- B [Through Hole (Standard)]
- Bore Size:
- 80mm
- Stroke:
- 40mm
- Body Option:
- M (Rod End Male Thread)
- Auto Switch Groove:
- Z (Auto Switch Mounting Grooves)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
NC(D)Q2-Z, Compact Cylinder, Double Acting, Single Rod
Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting, single rod, compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, clevis, foot, head flange and rod flange
- Auto switch capable
-
