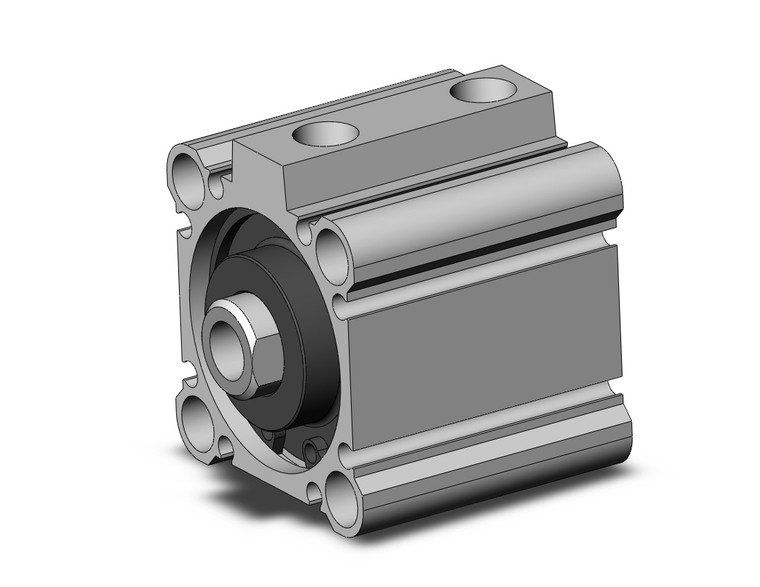

SMC NCQ2KB40-20DZ Compact Cylinder
- SKU:
- NCQ2KB40-20DZ
- Condition:
- New
- Magnet:
- None
- Mounting:
- B [Through Hole (Standard
- Bore Size:
- 40mm
- Stroke:
- 20mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Groove:
- Z (Auto Switch Mounting Grooves)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
NC(D)Q2K-Z, Compact, Double Acting, Single Rod, Non-rotating
Standard double acting, single non-rotating piston rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 63mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting, single rod, non-rotating compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, clevis, rod flange, head flange, and foot
- Auto switch capable
