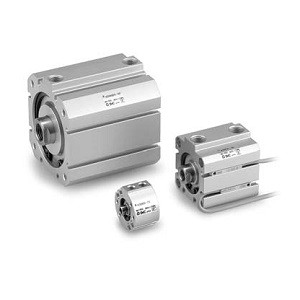

SMC NCQ8E056-025M Compact Cylinder, Ncq8

(No reviews yet) Write a Review
SKU:
NCQ8E056-025M
Condition:
New
Availability:
In stock: 4
Auto Switch:
No Switch
Body Option:
Male Rod End
Stroke:
1/4"
Bore Size:
9/16"
Overall Length:
Standard
Mounting:
Front screw clearance hole
$37.15

Description

NC(D)Q8, Compact Cylinder, Double Acting, Single Rod

SMC s double acting, single rod version of the NCQ8 series is a square body, compact interchange type cylinder that allows close center to center mounting. Mounting of the auto switch is easy and is mountable on multi-sides. Use of the retaining ring method improves maintenance performance. Replacing seals is easily obtained by removing the collar.

- Double acting, single rod type
- Cylinder stroke range: 1/8 to 4
- Maximum operating pressure: 200PSI
- Operating temperature range: 15 - 150 F
- Auto switch capable
-

Series Catalog

AutoCAD File
