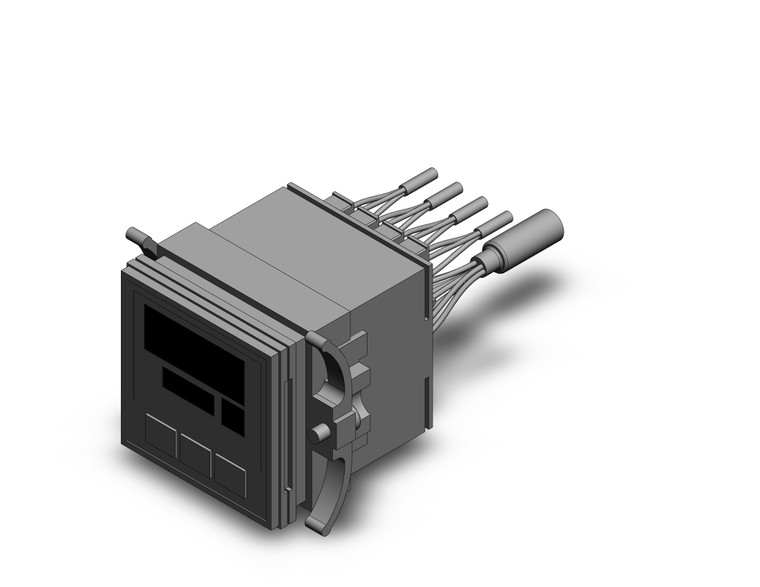

SMC PF2D201-B controller,pure water/chemical

(No reviews yet) Write a Review
SKU:
PF2D201-B
Condition:
New
Type:
D (for Deionized Water and Chemicals)
Output Specification:
1 (PNP 4 Outputs)
Unit Specification:
With Unit Switch Function
Option 1:
B (Front Protective Cover + Panel Mount)
Option 2:
None
$308.75

Description

PF2*20, 4-Channel Digital Flow Monitor, 1-Color Display, IP65, for PF2*5 Sensors

PF2*20 is a monitor with display for up to 4 remote flow sensors. It is compatible with PF2A air, PF2W water, and PF2D liquid chemical flow sensors. The sensors and monitor can be located up to 3m apart using the sensor s optional cables. The orange 4-digit LED display can show instantaneous or accumulated flow. A numeric indicator confirms the channel displayed. 1 PNP or NPN switch output is available for each channel, with an LED confirming the signal. A panel mount adapter is optional. PF2*20 is IP65 rated (front panel only), and is CE and RoHS compliant.

- Flow ranges are compatible with the selected sensor type
- Power supply voltage: 12-24 VDC
- Switch output modes: Hysteresis, window comparator, accumulation set point, accumulation pulse
- Accumulated flow range: 999,999 L or ft
- Accuracy: 5% F.S.
- Repeatability: 3% F.S.
-

Series Catalog

AutoCAD File

View AllClose

Related Products

SMC PF2D201-A4C controller,pure water/chemical

SMC PF2D201-A4C controller,pure water/chemical

$317.40
smc offers a variety of digital flow switches. series pf2a for air, pf2w for water, pf2d for deionized water and chemicals. flow rate setting and monitoring are possible with the digital display...
$317.40
<div class="product-description"><p>smc offers a variety of digital flow switches. series pf2a for air, pf2w for water, pf2d for deionized water and chemicals. flow rate setting and monitoring are possible with the digital display. integrated and remote type displays are available for different types of application. water resistant construction is used conforming to ip65 protection. switching from real-time flow rate to accumulated flow is possible.</p><ul><li>space saving</li><li>applicable to e-con</li><li>multiple sensors (max. 4 pcs.) can be managed collectively </li><li>improved enclosure protection</li><li>multi-function</li><li>improvement in operability </li></ul><br><div class="product-files"><div><a target="_blank" href="https://automationdistribution.com/content/files/pdf/pf2.pdf"> series catalog</a></div></div></div>

SMC PF2D201-A controller,pure water/chemical

$304.50
smc offers a variety of digital flow switches. series pf2a for air, pf2w for water, pf2d for deionized water and chemicals. flow rate setting and monitoring are possible with the digital display...
$304.50
<h2>PF2*20, 4-Channel Digital Flow Monitor, 1-Color Display, IP65, for PF2*5 Sensors</h2><p><h3>PF2*20 is a monitor with display for up to 4 remote flow sensors. It is compatible with PF2A air, PF2W water, and PF2D liquid chemical flow sensors. The sensors and monitor can be located up to 3m apart using the sensor s optional cables. The orange 4-digit LED display can show instantaneous or accumulated flow. A numeric indicator confirms the channel displayed. 1 PNP or NPN switch output is available for each channel, with an LED confirming the signal. A panel mount adapter is optional. PF2*20 is IP65 rated (front panel only), and is CE and RoHS compliant.</h3>- Flow ranges are compatible with the selected sensor type<br>- Power supply voltage: 12-24 VDC<br>- Switch output modes: Hysteresis, window comparator, accumulation set point, accumulation pulse<br>- Accumulated flow range: 999,999 L or ft <br>- Accuracy: 5% F.S. <br>- Repeatability: 3% F.S.<br>- <p><a href="https://content2.smcetech.com/pdf/PF2D.pdf" target="_blank">Series Catalog</a>

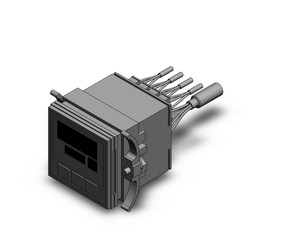

SMC PF2D201-B4C controller,pure water/chemical
