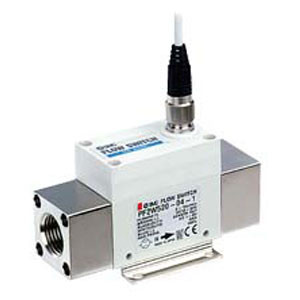

SMC PF2W520-N03-1 Digital Flow Switch, Water, Pf2W, Ifw

(No reviews yet) Write a Review

SKU:: PF2W520-N03-1
Condition:: New
Availability:: In stock: 1
Flow Range:: 2~16 l/min
Thread:: NPT Thread
Port Size:: 3/8
Wiring Specification:: 3m Lead Wire w/Connector
Output Specification:: Pulse Output + Analog Output 1~5V

$463.93

Current Stock:

Quantity:

Description

Description

PF2W5, Digital Water Flow Sensor, Remote, IP65, 0.5-100 Lpm

PF2W is a digital flow sensor for water or coolant. This is a legacy sensor, refreshed in 2009 as PF3W. This is the remote version of PF2W7, with a display. The mounting bracket is integrated into the body, while the M12 lead wire is optional. PF2W5 can be paired with a PF2W200 or PF2W300 remote monitor to display instantaneous or accumulated flow values. An optional analog output is also available. PF2W5 is IP65 rated and CE compliant.

- Flow ranges (lpm): 0.5-4, 2-16, 5-40, 10-100
- Port sizes (Rc, NPT, G): 3/8, 1/2, 3/4, 1 (flow range dependent)
- Temperature rating: 0-50 C
- Output options: 1-5V, 4-20mA
- Accuracy: 5% F.S. or 3% F.S. (flow range dependent)
- Repeatability: 3% F.S.
-
