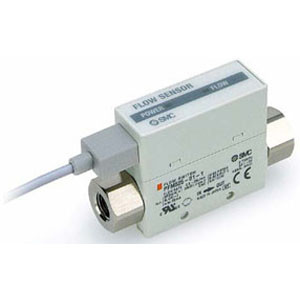

SMC PFM511-N02-2 Digital Flow Switch
- SKU:
- PFM511-N02-2
- Condition:
- New
- Availability:
- In stock: 33
- Flow Rate Range:
- 11 [2 to 100 (50 for CO2) /min]
- Flow Adjustment Valve:
- None
- Port Size:
- N02 (NPT1/4)
- Piping Entry Direction:
- Straight
- Output Specification:
- 2 [Analog Output (4 to 20 mA)]
- Instruction Manual:
- With Instruction Manual
- Calibration Certificate:
- None
- Connector:
- Lead Wire w/Connector (2 m)
- Option:
- None
Description
PFM5, Digital Air Flow Sensor, Remote, IP40, 0.2-100 Lpm
PFM5 is a digital flow sensor compatible with air, nitrogen, argon and carbon dioxide. This is the remote version of PFM7, without a display. The top panel includes two LEDs to indicate power and flow functions. Options include inline or bottom piping entry, cable connector type, a manual flow adjustment valve, and panel or bracket mounts. An analog voltage or current ouput is available. PFM5 is IP40 rated, and C-UL-US and CE compliant. Please consider the PFG digital flow monitor for displaying this sensor s outputs. Also compatible with the PFM3 monitor.
- Flow ranges (lpm): 0.2-10, 0.5-25, 1-50, 2-100- Port sizes: 1/8 or 1/4 (Rc, NPT, G); 4, 6, 8 or 1/4 one-touch fittings
- Rated pressure range (MPa): -0.07 to 0.75
- Output options: 1-5V or 4-20mA
- Accuracy: 3% F.S.
- Repeatability: 1% F.S.
-
