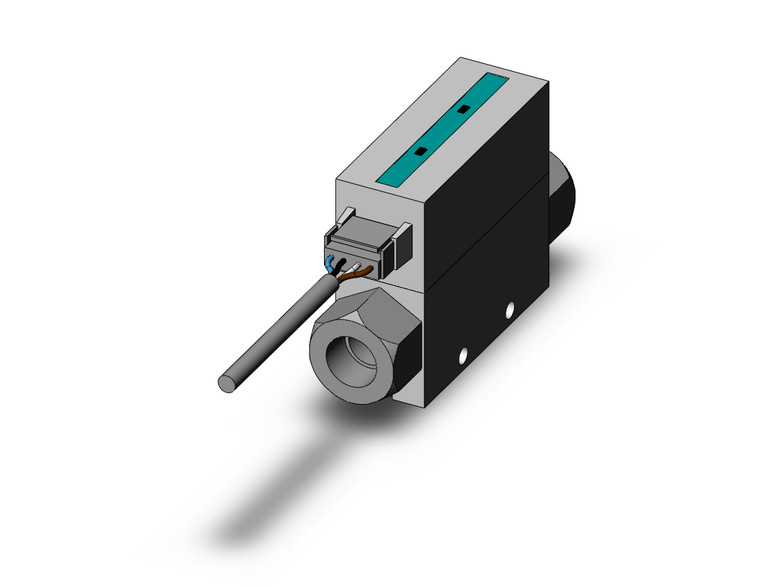

SMC PFM550-N01-1 Digital Flow Switch
- SKU:
- PFM550-N01-1
- Condition:
- New
- Availability:
- In stock: 258
- Flow Rate Range:
- 25 for CO2 l/min
- Port Size:
- NPT1/8
- Piping Entry Direction:
- Straight
- Output Specification:
- 1 to 5 V
- Instruction Manual:
- With Instruction Manual
- Connector:
- 2 m
Description
PFM5, Digital Air Flow Sensor, Remote, IP40, 0.2-100 Lpm
PFM5 is a digital flow sensor compatible with air, nitrogen, argon and carbon dioxide. This is the remote version of PFM7, without a display. The top panel includes two LEDs to indicate power and flow functions. Options include inline or bottom piping entry, cable connector type, a manual flow adjustment valve, and panel or bracket mounts. An analog voltage or current ouput is available. PFM5 is IP40 rated, and C-UL-US and CE compliant. Please consider the PFG digital flow monitor for displaying this sensor s outputs. Also compatible with the PFM3 monitor.
- Flow ranges (lpm): 0.2-10, 0.5-25, 1-50, 2-100- Port sizes: 1/8 or 1/4 (Rc, NPT, G); 4, 6, 8 or 1/4 one-touch fittings
- Rated pressure range (MPa): -0.07 to 0.75
- Output options: 1-5V or 4-20mA
- Accuracy: 3% F.S.
- Repeatability: 1% F.S.
-
Related Products

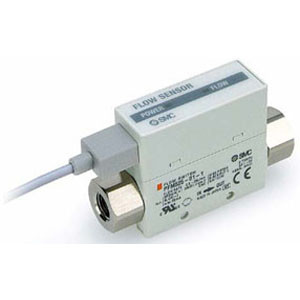

SMC PFM550-N01-2-A Digital Flow Switch
