SMC PFM710-N01-E Digital Flow Switch
- SKU:
- PFM710-N01-E
- Condition:
- New
- Availability:
- In stock: 19
- Flow Rate Range:
- 5 for CO2 l/min
- Port Size:
- NPT1/8
- Piping Entry Direction:
- Straight
- Output Specification:
- 1 to 5 V
- Unit Specification:
- Unit Switching Function
- Instruction Manual:
- With Instruction Manual
- Connector:
- 2 m
Description

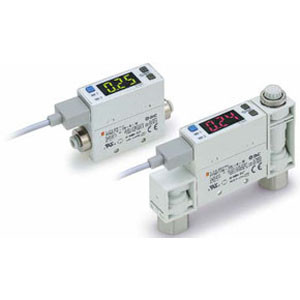

PFM7, Digital Air Flow Sensor, 2-Color Display, IP40, 0.2-100 Lpm
PFM7 is a digital flow sensor compatible with air, nitrogen, argon and carbon dioxide. This is a legacy sensor, refreshed in 2019 as PF2M7. The 3-digit LED display can be red or green, changing when a set point is reached. Either instantaneous or accumulated flow can be shown. Options include inline or bottom piping entry, cable connector type, a manual flow adjustment valve, and panel or bracket mounts. Two outputs are available, including two switch signals, or a switch and analog signal. PFM7 is IP40 rated, and C-UL-US and CE compliant. See PF2M7 if RoHS is required.
- Flow ranges (lpm): 0.2-10, 0.5-25, 1-50, 2-100- Port sizes: 1/8 or 1/4 (rc, NPT, G): 4, 6, 8 or 1/4 one-touch fittings
- Rated pressure range (kPa): -70 to 750
- Output options: NPN/PNP, 1-5V, 4-20mA
- Accuracy: 5% F.S. (analog out)
- Repeatability: 1% F.S.
-
