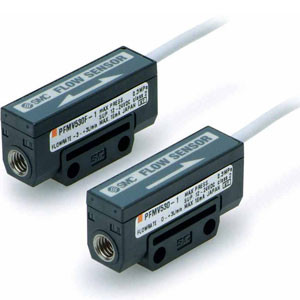

SMC PFMV505-1-A Flow Sensor For Air

PFMV5, Low Air Flow Analog Sensor, Remote, IP40, -3 to 3 Lpm

PFMV5 is a low flow analog sensor compatible with air and nitrogen. It is intended to provide more reliable detection of suction of small components than can be achieved with a pressure sensor. The very low flow rate ranges can also support leak detection. Its small size permits deployment into areas with tight clearance, or manifold arrangements with a small footprint. The sensor includes a fixed cable and holes for direct mounting, with an optional mounting bracket kit. PFMV5 is IP40 rated, and meets, C-UL-US, CE, and RoHS standards. Please consider the PFG digital flow monitor for displaying this sensor s output. Also compatible with the PFMV3 monitor.

- Flow range (lpm): 0-0.1 (X502), 0-0.5, 0-1.0, 0-3.0, -0.5-0.5, -1.0-1.0, -3.0-3.0
- Port size: M5 thread
- Rated pressure range (kPa): -70 to 300
- Output: 1-5V
- Accuracy: 5% F.S.
- Repeatability: 2% F.S.
-
