SMC PSE577-02-28 Pressure Switch, Pse100-560

(No reviews yet) Write a Review

SKU:: PSE577-02-28
Condition:: New
Sensor Range:: 7 [For Positive Pressure (0~10MPa)]
Port Size:: 02 [R1/4 (M5 Female Thread)]
Output Specifications:: 28 [Current Output (4~20mA) Type]
Lead Wire:: w/Lead Wire and M12 Connector (3 m), Straight

$195.85

Current Stock:

Quantity:

Description

Description

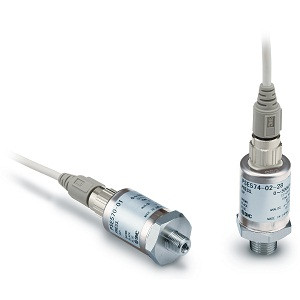

PSE570, Remote Analog Pressure Sensor, Enhanced, IP65

PSE570 remote pressure sensors offer positive pressure ranges from 500 kPa to 10 MPa, with increased proof pressures and a higher withstand voltage for improved durability in unpredictable conditions. A nickel-plated C3604 brass port and ceramic sensor impart compatibility with a wide range of liquids and gases. An analog V or mA signal ouput is transmitted over a cable with an M12 connector. Accuracy is 1% full scale for pressure below 1 MPa and 2.5% for higher ranges. PSE570 sensors are CE and RoHS compliant, with an IP65 enclosure rating.

- Remote high pressure sensor with enhanced durability for liquid or gas
- Power supply requirement: 12 to 24 VDC
- 1 to 5 V or 4 to 20 mA analog output
- Accuracy: 2.5% F.S. (2, 5,or 10 MPa)
- Repeatability: 0.5% F.S. (2, 5, or 10 MPa)
- Port sizes: 1/8 or 1/4 Rc male (incl. M5 femalee)
-
