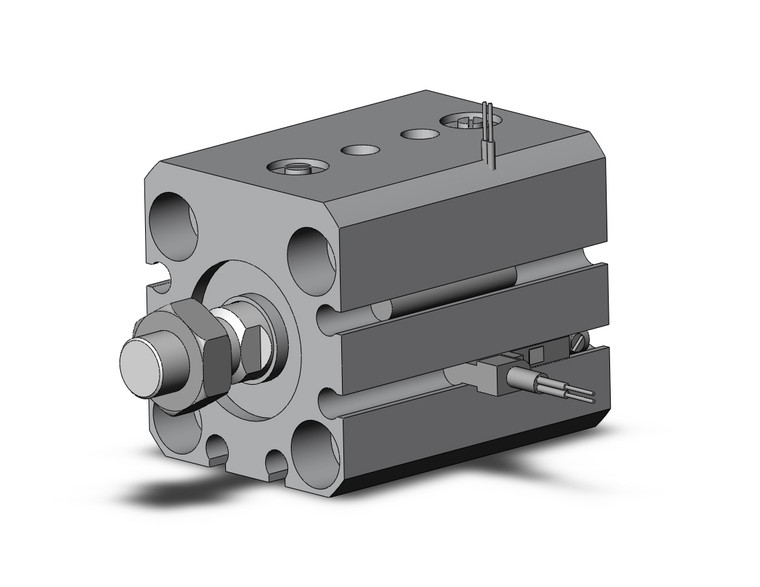

SMC RDQB20-15M-A96VL compact cylinder cyl, compact, air cushion, sw capable

SMC RDQB20-15M-A96VL RQ Series Compact Cylinder With Air Cushion

SMC
SKU:
RDQB20-15M-A96VL
Availability:
Contact us to confirm availability and lead times.
$129.65
Condition:
New
Current Stock:
Description

RQ Series Compact Cylinder With Air Cushion

  • Adds the air cushion mechanism to the CQS and CQ2 series compact; cylinders, extending the body length only +2.5 mm to 13 mm;
  • Nearly triple absorbable, allowable kinetic energy. (Compared to the; rubber bumper of Series CQS and CQ2);
  • Added compact type foot brackets;
  • With auto switch (Series RDQ: RDQ)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Through-hole (Standard)
    Bore Size:
    Bore Size 20 mm
    Port Thread Type:
    M Thread,Rc
    Cylinder Stroke:
    Standard Stroke 15 mm
    Body Option:
    Rod End Male Thread
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :3m, Apply Voltage :DC4~8V
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
