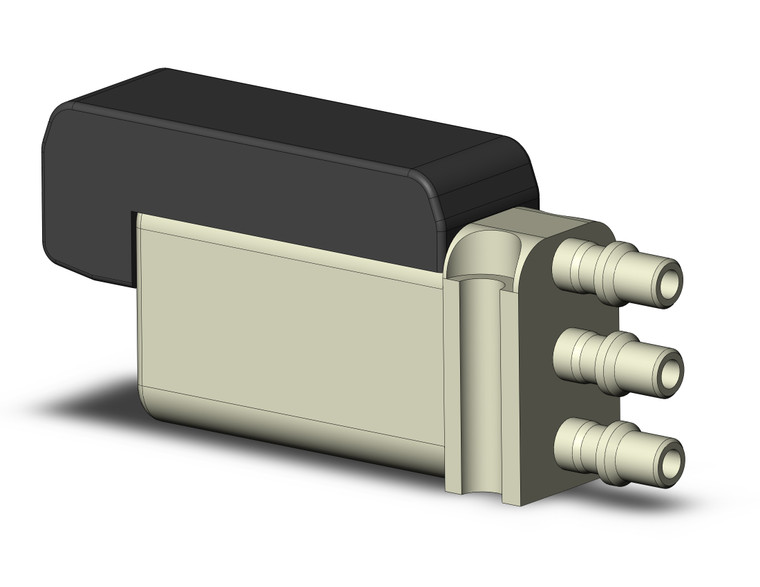

SMC S070C-6CCO-32 3 Port Solenoid Valve
- SKU:
- S070C-6CCO-32
- Condition:
- New
- Availability:
- In stock: 1200
- Body Style:
- C (Body Ported)
- Coil Voltage:
- 6 (12 VDC)
- Flow Rate:
- C (Power Consumption= 0.5W, Operating Press= 0.3MPa, Cv= 0.016)
- Electrical Entry:
- CO (Plug Lead w/Light/Surge Suppressor without connector)
- Port Size:
- 32 (Body Ported, Barb Fitting 3.18/2)
- Made to Order:
- None
- Lead Wire Length:
- None
Description
S070, 3 Port Solenoid Valve, Compact Direct Operated
Series S070 is a super compact direct acting 2/3 port solenoid valve that meets the miniaturization needs of analyzers, medical equipment and semiconductor manufacturing equipment. S070 is extremely lightweight (5g for valve single unit type) and operation noise is 38dB(A) or less. It is easy to increase or decrease the number of stations (stacking base). Valve width is 7mm.
- 3 port solenoid valve, direct operated- Valve width: 7mm
- Weight: 5g (single unit valve)
- Operation noise: 38dB(A) or less
- Power consumption: 0.35W (std), 0.1W (w/power saving circuit)
-
Related Products

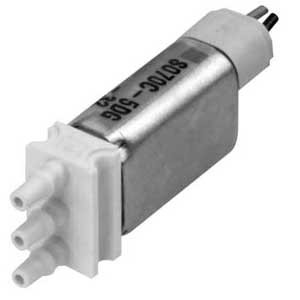

SMC S070C-5CCO-32 3 Port Solenoid Valve
