SMC SJ3A6-5CU-DP Valve, Sol, Plug-In

SMC SJ3A6-5CU-DP SJ3A6 Series Plug-in Connector Type Vacuum Release Valve With Restrictor Solenoid Valves(3 Position 3 Port With Restrictor) Standard

SMC
SKU:
SJ3A6-5CU-DP
Availability:
Factory stock
$85.35
Condition:
New
Current Stock:
Description

SJ3A6 Series Plug-in Connector Type Vacuum Release Valve With Restrictor Solenoid Valves(3 Position 3 Port With Restrictor) Standard

  • 2 built-in spool valves;
  • Possible to control vacuum adsorption and release with a single valve unit;
  • Width 10 mm (Same size as Series SJ3000);
  • With a restrictor that can adjust the flow rate of the release air;
  • Built-in replaceable filter on both vacuum and release sides;
  • Combination of the 4 port solenoid valve SJ2000/3000 is possible. (Made to ;?Order);

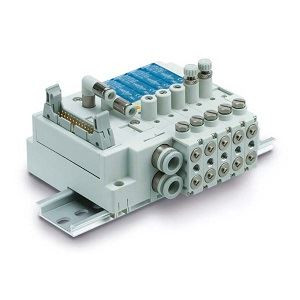

  • Manifold type No.: SS3J3
    • Additional Information
    Coil Spec.:
    Standard
    Rated Voltage:
    24 VDC
    Common Specifications:
    Positive Common
    Connector Entry:
    Dedicated For Centralized Wiring
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor(Non-polar Type)
    Manual Override:
    Non-locking Push Type
    Needle Operation:
    Slotted Locking Type
    PS Port For Detection:
    With Plug(M-5P)
