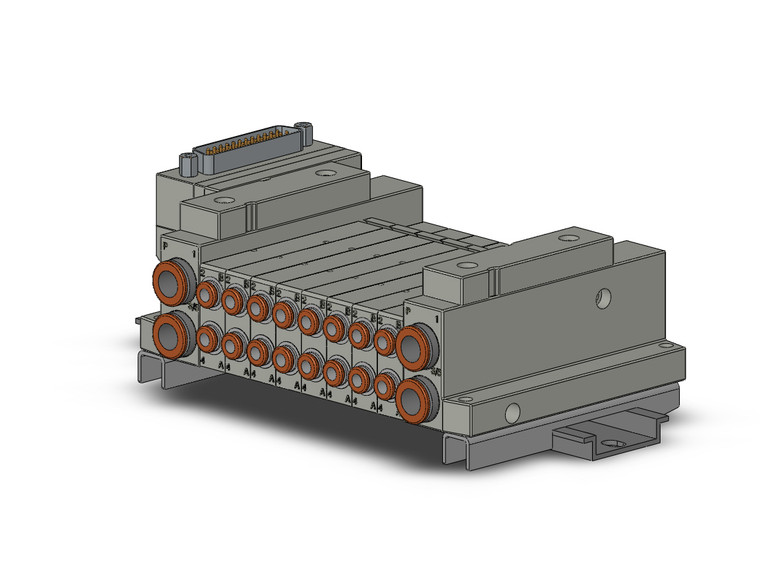

SMC SS5V1-10FD1-08B-C4-D 5 Port Solenoid Valve Manifold

SMC SS5V1-10FD1-08B-C4-D SV Series D-sub Connector Manifold Tie-rod Base

SMC
SKU:
SS5V1-10FD1-08B-C4-D
Availability:
Contact us to confirm availability and lead times.
$294.95
Condition:
New
Current Stock:
Description

SV Series D-sub Connector Manifold Tie-rod Base

  • It is easily possible to add stations of the manifold valve or change specifications;
  • One side solenoid;
  • 4 position, dual 3 port specifications available;
  • Manifold type No.: SS5V1 SS5V2 SS5V3 SS5V4
    • Additional Information
    Series:
    SV1000
    Connector Entry Direction:
    Upward
    Valve Stations:
    8 Stations
    P, E Port Outlets:
    Both Sides
    Pilot Type:
    Internal Pilot
    A/B Port Size:
    A,B Port:One-touch Fitting For 4
    Mounting:
    DIN Rail Mounting (With DIN rail)
