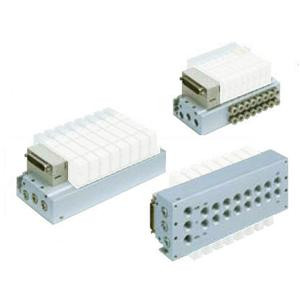

SMC SS5Y3-50F1-06D-01T SY3000 Valve Manifold, Side Ported, 6 Stations, 1/8

SMC SS5Y3-50F1-06D-01T - SY3000·5000·7000 Series Plug-in Metal Base D-sub Connector Flat Ribbon Cable PC Wiring Type 50/51

The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.

Specifications

Features

• Thanks to the flow increase, valve size can be reduced
• Saves energy and space
• Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard)
• Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal)
• Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
• Manifold type No.: SS5Y3, SS5Y5, SS5Y7

Applications

Used for consolidating multiple valve stations into a single air and wiring connection.

Related Components

• SY3000-23-24A - Round Head Combination Screw
• SY3000-222-1A - Hexagon Socket Head Cap Screw
• SY30M-11-1A - Base Gasket
• SY30M-15-2A - Clamp Bracket Assembly
• M2X32 - Replacement Parts Round Head Combination Screw

Frequently Asked Questions

What type of actuation does the SS5Y3-50F1-06D-01T use?

It is a side ported valve.

What port size does the SS5Y3-50F1-06D-01T have?

The A and B ports are 1/8.

How many stations does the SS5Y3-50F1-06D-01T have?

This manifold is configured for 6 Stations stations.

Does this manifold include valves?

Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
