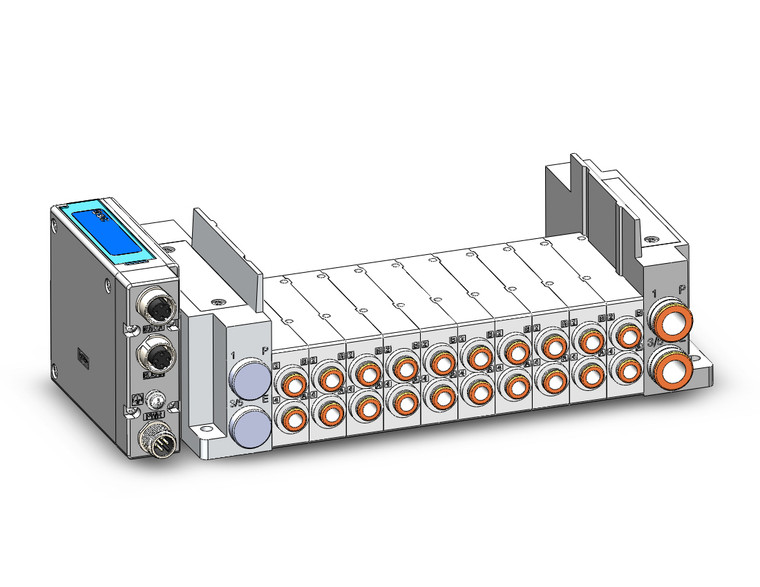

SMC SS5Y5-10SFAN-10B-C6 Ss5Y5 10 Sta Manifold Base

SMC SS5Y5-10SFAN-10B-C6 SY3000-5000-7000 Series 5 Port Solenoid Plug-in Connector Connecting Base EX260 Type 10/11 Manifold

SMC
SKU:
SS5Y5-10SFAN-10B-C6
Availability:
Contact us to confirm availability and lead times.
$609.00
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series 5 Port Solenoid Plug-in Connector Connecting Base EX260 Type 10/11 Manifold

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY5000
    Type:
    Side Ported
    SI Unit:
    PROFINET Number Of Outputs:32 M12
    SI Unit Output Polarity:
    Negative Common (PNP)
    Valve Stations:
    10 Stations
    P, E Port Outlets:
    Both Sides
    SUP/EXH Block Assembly Specifications:
    Standard/Internal Pilot Specification
    A/B Port Size:
    One-touch Fitting For 6
    Mounting And Option:
    Direct Mounting Option:None
