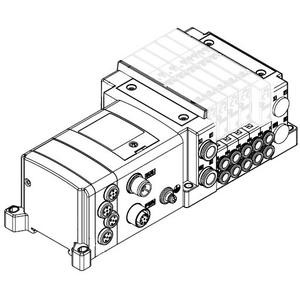

SMC SS5Y7-10SEA-04B-N7 SY7000 Valve Manifold, Side Ported, 4 Stations, One-touch Fitting For Φ1/4″

SMC SS5Y7-10SEA-04B-N7 - SY3000·5000·7000 Series 5 Port Solenoid Plug-in Connector Connecting Base EX260 Type 10/11 Manifold

The SMC SS5Y manifold base mounts multiple SY series valves on a common supply and exhaust, reducing plumbing and wiring to a single connection point. Serial transmission and multi-connector wiring options cut control cabinet wiring further.

Specifications

Features

• Thanks to the flow increase, valve size can be reduced
• Saves energy and space
• Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard)
• Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal)
• Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
• Manifold type No.: SS5Y3, SS5Y5, SS5Y7

Applications

Used for consolidating multiple valve stations into a single air and wiring connection.

Related Components

• SX3000-146-2 - Connector Gasket
• SJ3000-155-1A - Label For Block Disk
• SY50M-15-1A - Clamp Bracket Assembly
• SX3000-145-21 - Tension Bolt
• SY70M-9-1A - Base Gasket
• SY70M-9-2 - Manifold Block Gasket

Frequently Asked Questions

What type of actuation does the SS5Y7-10SEA-04B-N7 use?

It is a side ported valve.

What port size does the SS5Y7-10SEA-04B-N7 have?

The A and B ports are One-touch Fitting For Φ1/4″.

How many stations does the SS5Y7-10SEA-04B-N7 have?

This manifold is configured for 4 Stations stations.

Does this manifold include valves?

Manifold bases and valves are ordered separately. The manifold part number defines the base, station count, and wiring; each station is populated with a valve ordered under its own part number.
