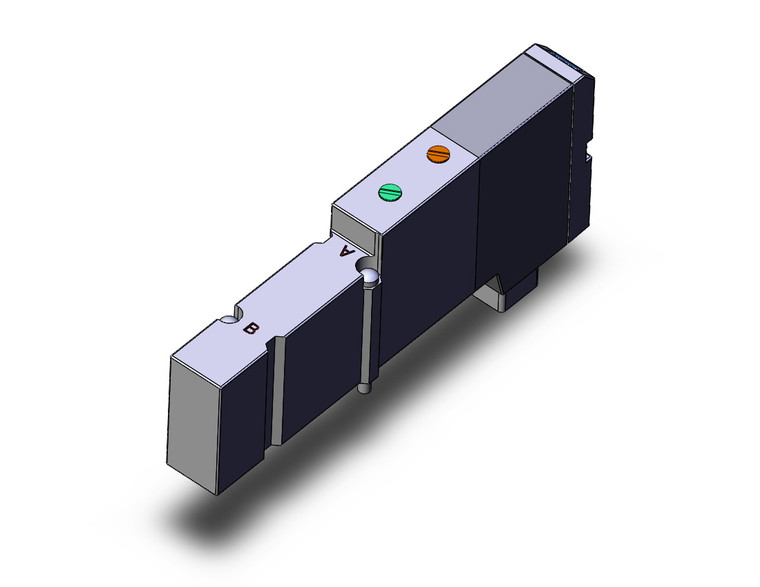

SMC SV1B00K-5FUD 4/5 Port Solenoid Valve

(No reviews yet) Write a Review
SKU:
SV1B00K-5FUD
Condition:
New
Function:
B (4 Position Dual 3 Port N.O./N.O.)
Pilot:
Internal Pilot
Back Pressure Check:
K (Built-in)
Voltage:
5 (24VDC)
Light & Surge Suppressor:
U (Light & Surge Suppressor)
Manual Override:
D (Slotted Locking Type)
Manifold Block:
w/o Manifold Block
Manifold Wiring:
Double
A, B Port:
None
$103.80

Related Products

SMC SV1A00K-5FUD 4/5 Port Solenoid Valve

SMC SV1A00K-5FUD 4/5 Port Solenoid Valve

$103.80
SV1000, 5 Port Solenoid Valve, All TypesThe SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes...
$103.80
SMC SV1C00K-5FUD 4/5 Port Solenoid Valve

SMC SV1C00K-5FUD 4/5 Port Solenoid Valve

$103.80
SV1000, 5 Port Solenoid Valve, All TypesThe SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes...
$103.80
SMC SV1B00-5FUD 4/5 Port Solenoid Valve

SMC SV1B00-5FUD 4/5 Port Solenoid Valve

$94.15
SV1000, 5 Port Solenoid Valve, All TypesThe SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes...
$94.15
<div class="product-description"><p>the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly simplified. cassette base type manifolds offer the ultimate in flexibility. manifold sections can be added using a simple release mechanism. conventional tie-rod base type manifolds are also available. the use of 34 pin connectors allows up to 16 stations with double solenoids.</p><ul><li>fluid: air</li><li>operating pressure range: -100kpa to 0.7mpa</li><li>response time ms (at 0.5mpa): 18 or less</li><li>coil rated voltage: 12, 24vdc</li><li>ambient &amp; fluid temperature: -10 to 50 c</li><li>enclosure: ip67 (based on iec529)</li></ul><br><div class="product-files"><div><a target="_blank" href="https://automationdistribution.com/content/files/pdf/sv.pdf"> series catalog</a></div></div></div>

SMC SV1400K-5FUD 3 Position Exhaust Center

$103.50
the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly...
$103.50

SMC SV1500K-5FUD

$92.55
Sv1000 Solenoid Valve, 5-Port 2I Sv1000 No Size Rating Valve, Dbl Sol, Plug-In
$92.55
