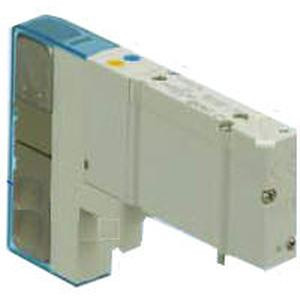

SMC SY5401-5NZ1 Valve, 5 Port Solenoid

SY5000, 5 Port Solenoid Valve, All Types - New Style

SMC has improved product performance and reliability with the redesigned SY series valve. The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, Ozone resistance has been improved. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
- *** We are currently experiencing long lead times for some SY products. Please consult with SMC Representative for alternatives ***

- Flow rate up to 1.0 Cv
- Possible to drive cylinders up to 63 at 300 mm/s
- Low power consumption (0.35 w standard)
- Improved safety with slide locking manual override
- Quick response time - 10 ms
