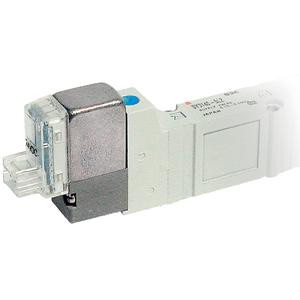

SMC SY5420-5DO-01T 4/5 Port Solenoid Valve
- SKU:
- SY5420-5DO-01T
- Condition:
- New
- Function:
- 4 (3 Position Exhaust Center)
- Piping:
- 20 (Body Ported Plug-in Integrated)
- Pilot:
- Internal Pilot
- Specifications:
- Standard
- Voltage:
- 5 (24VDC)
- Lead Wire:
- DO (DIN Connector w/o Connector)
- Surge Suppressor:
- None
- Manual Override:
- Non-locking Push Style
- Port Size:
- 01 (Body Ported 1/8)
- Thread:
- T (NPTF)
- Option:
- None
Description
SY5000, 5 Port Solenoid Valve, All Types
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
-
- Fluid: air- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm 2 (Cv): body ported 10.6 (0.59);base mounted 12.6 (0.7)
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light surge voltage suppressor: 32ms or less
- Ambient fluid temperature: 50 C
