SMC SY70M-27-1-W2-B03N SY7000 Component
SMC
$80.55

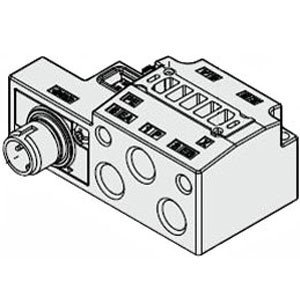

SMC SY70M-27-1-W2-B03N - SY3000·5000·7000 Series 5 Port Solenoid Valve Sub-Plate
This is a component for SMC SY series valve and manifold assemblies, used for service, replacement, or system build-up.
Specifications
| Series | SY7000 |
| Wiring Type | With M12 Connector Cable(500 mm) |
| Port Location(Sub-plate) | Bottom Ported |
| Port Size | 3/8 |
| Sub-Plate Thread Type | NPT |
Features
- Thanks to the flow increase, valve size can be reduced
- Saves energy and space
- Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard)
- Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal)
- Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
- Manifold type No.: SS5Y3, SS5Y5, SS5Y7
Applications
Used for service and replacement on SY series valve installations.
Related Components
- SY7000-221-1A - Round Head Combination Screw
- SY7000-222-1A - Hexagon Socket Head Cap Screw
- SY70M-11-1A - Base Gasket
