SMC SYJ5240-6D-01 SYJ5000 Solenoid Valve, 2 Position Double, Base Mounted, 12 VDC
SMC
$83.45

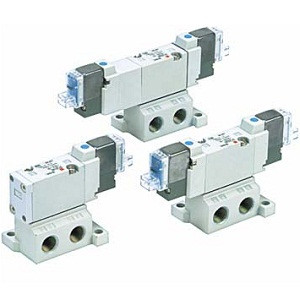

SMC SYJ5240-6D-01 - SYJ5000 Series 5 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ5000 |
| Type Of Actuation | 2 Position Double |
| Piping Type | Base Mounted |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 12 VDC |
| Electrical Entry | DIN Terminal |
| Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| Port Size | 1/8 With Sub-plate |
| Thread Type | Rc |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ5000-22-1 - Sub-plate
- SY100-61-1 - DIN Connector
Frequently Asked Questions
What voltage is the SMC SYJ5240-6D-01?
The SYJ5240-6D-01 is rated 12 VDC.
What type of actuation does the SYJ5240-6D-01 use?
It is a 2 position double valve.
