SMC SYJ7120-5MO-01T SYJ7000 Solenoid Valve, 2 Position Single, Body Ported, 24 VDC, 1/8
SMC
$54.20

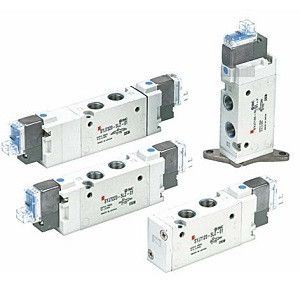

SMC SYJ7120-5MO-01T - SYJ7000 Series 5 Port Solenoid Valve Rubber Seal Body Ported Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ7000 |
| Type Of Actuation | 2 Position Single |
| Piping Type | Body Ported |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | M-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| A/B Port Size | 1/8 |
| Thread Type | NPTF |
| Bracket | Without Bracket |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Frequently Asked Questions
What voltage is the SMC SYJ7120-5MO-01T?
The SYJ7120-5MO-01T is rated 24 VDC.
What type of actuation does the SYJ7120-5MO-01T use?
It is a 2 position single valve.
What port size does the SYJ7120-5MO-01T have?
The A and B ports are 1/8.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
