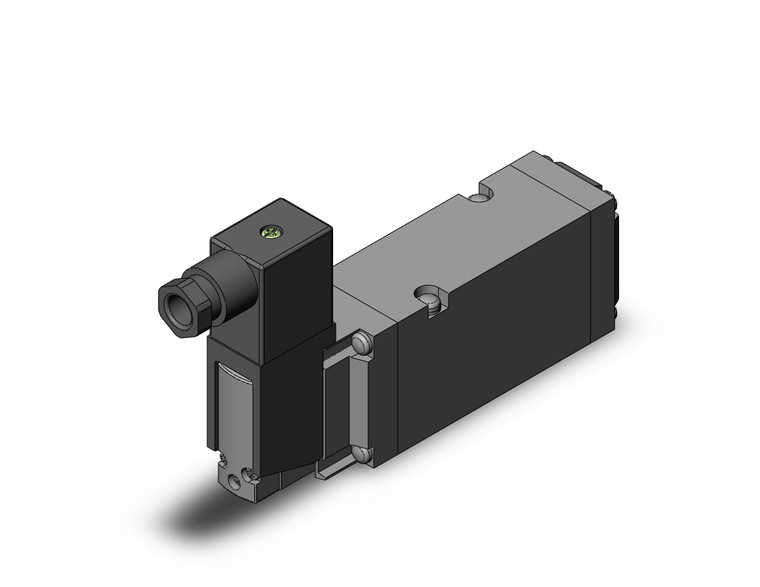

SMC VF5144-6DZ1 4/5 Port Solenoid Valve
- SKU:
- VF5144-6DZ1
- Condition:
- New
- Function:
- 1 (2 Position Single)
- Piping:
- 4 (Base Mounted)
- Exhaust:
- 4 (Base)
- Pressure Specification:
- Standard (0.7MPa)
- Coil Specification:
- Standard
- Voltage:
- 6 (12VDC)
- Lead Wire:
- D (DIN Terminal w/Connector)
- Light/Surge Suppressor:
- Z (With light/surge voltage suppressor)
- Manual Override:
- Non-locking Push Type
- Port Size:
- w/o Sub-plate
- Thread:
- Rc
- Made to Order:
- None
- CE Approval:
- None
Description
series vf, a five port pilot solenoid valve, offers large flow capacity in a compact size. the vf is available in many variations including three types of manual override and four types of electrical entry. common exhaust for main valve and pilot valve is also available.
- 5 port solenoid valve
- power consumption: 1.55w standard, 0.5w w/power saving circuit
- built-in full-wave rectifier (ac)
- body ported and base mounted styles
